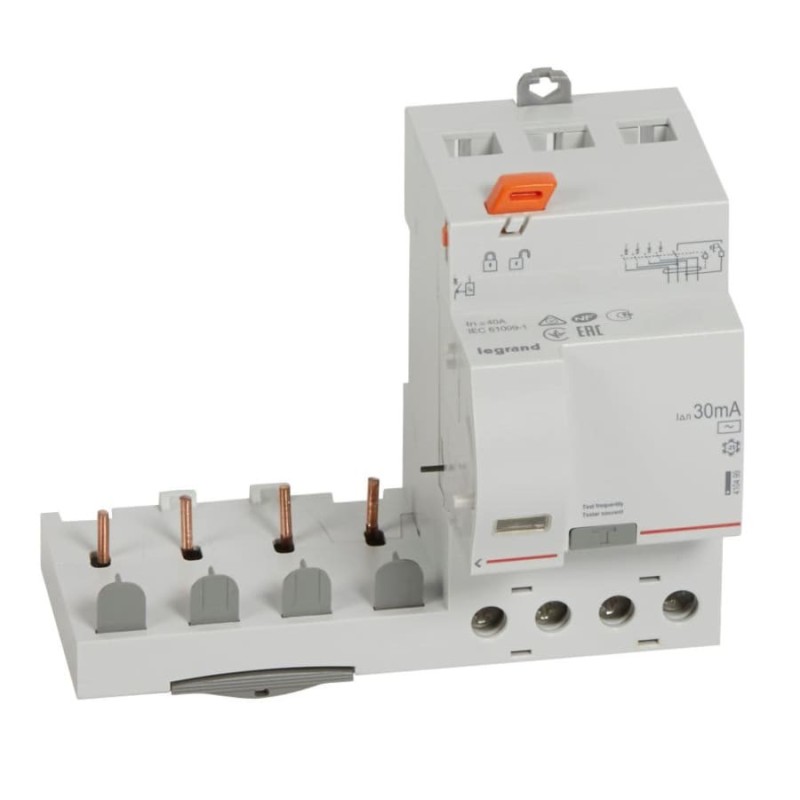

DX3 BDA 4P 40A AC 30MA

410499
Diffable block adaptable to DX3 screw for disj 1 4p 40a typeac module 30MA
€423.20
VAT excluded
Description
DX³, Differential block adaptable for modular circuit breaker ensuring the protection of persons against direct and indirect contacts and protection of installations against isolation defects

• The assets of the article:

Adaptable differential block dx³ tetrapolar 400V ~ For circuit breaker 1 module/pole
Departure protection: Low output by screw terminals - AC type: Detects with alternative components
Sensitivity 30MA - Intensity Nominal 40A - 3 modules
For traditional wiring
goes up to the right of the circuit breakers - compliant with the NF EN 61009-1
• The assets of the range:

By succeeding in the efficient alliance between high cutting power, high nominal intensity and low -size, DX³ modular circuit breakers respond perfectly to the constraints of selectivity and space gain, while ensuring optimal protection of people and goods defined by standard NF C 15-100. They make it possible to avoid the output of the entire installation in the event of a defect and to strengthen the power to cut down downstream protection. They can be installed in residential, small tertiary and large tertiary sites with cutting powers of 6 ka at 50 ka. The DX³ STOP ARC circuit breaker is a Legrand novelty, which limits the risk of fire caused by electric arc defects. The DX³ range is also made up of differential circuit breakers, differential switches as well as auxiliaries who ensure the remote trigger for circuit breakers, and adaptable differential blocks.
Technical sheet
Product Details
410499
3245064104999
